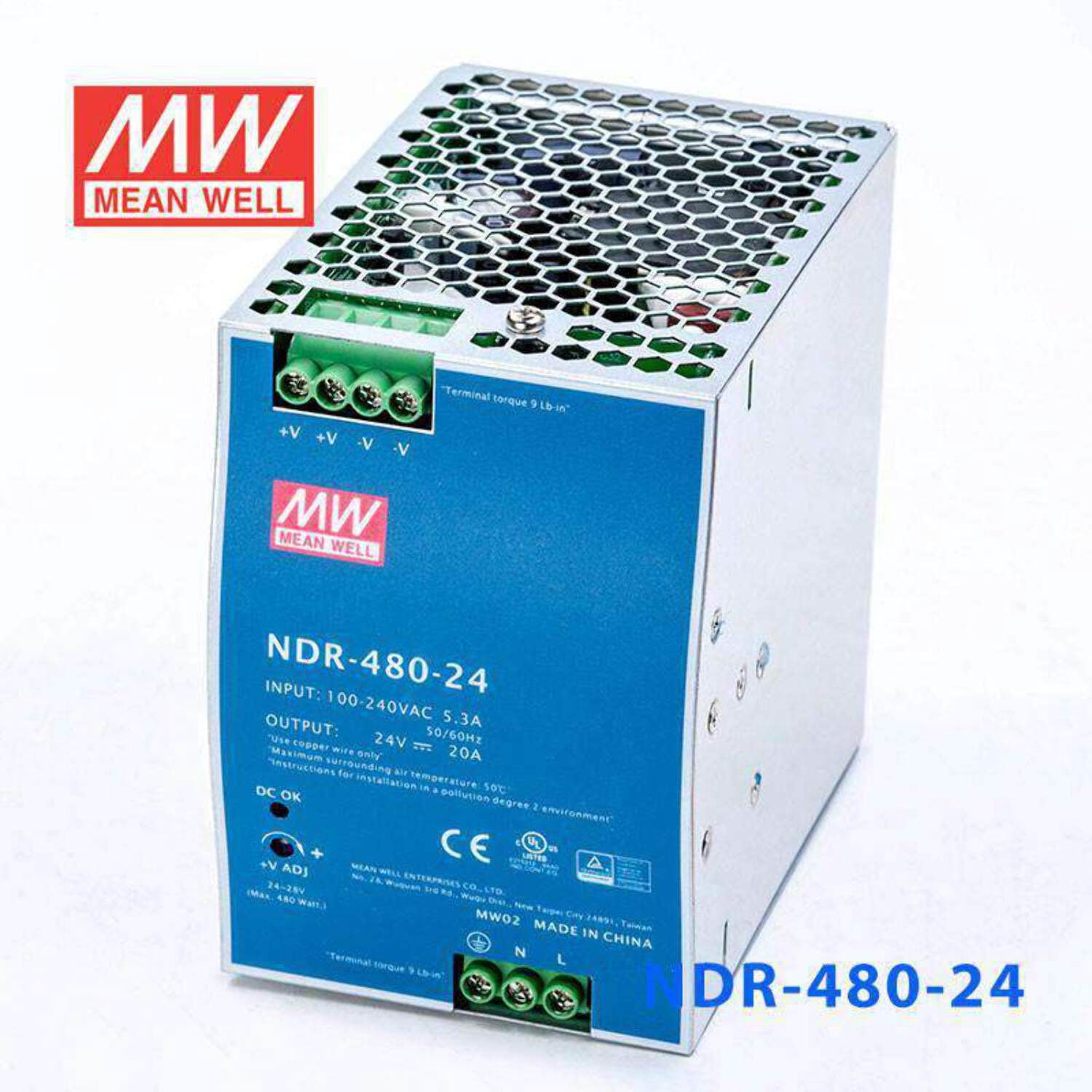

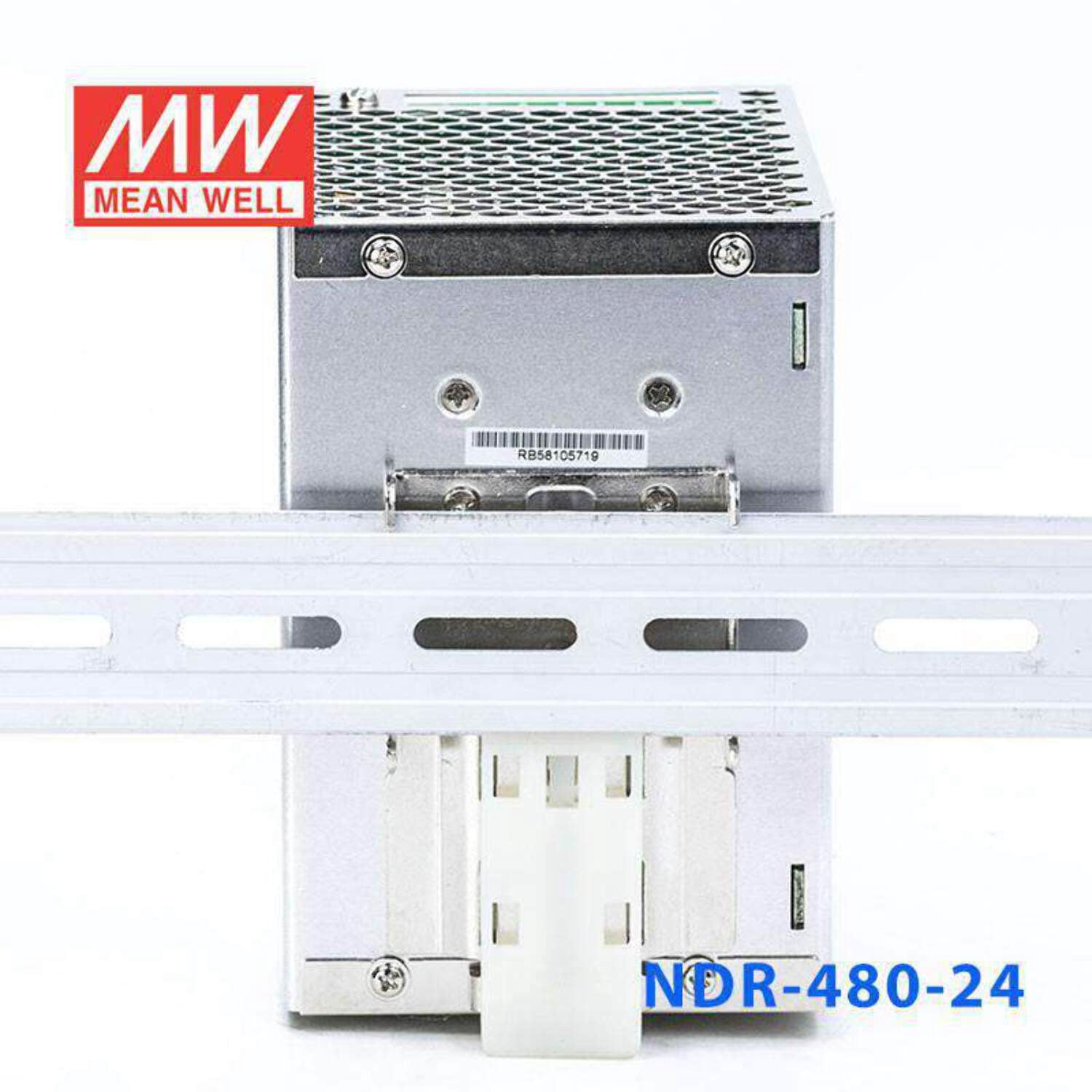

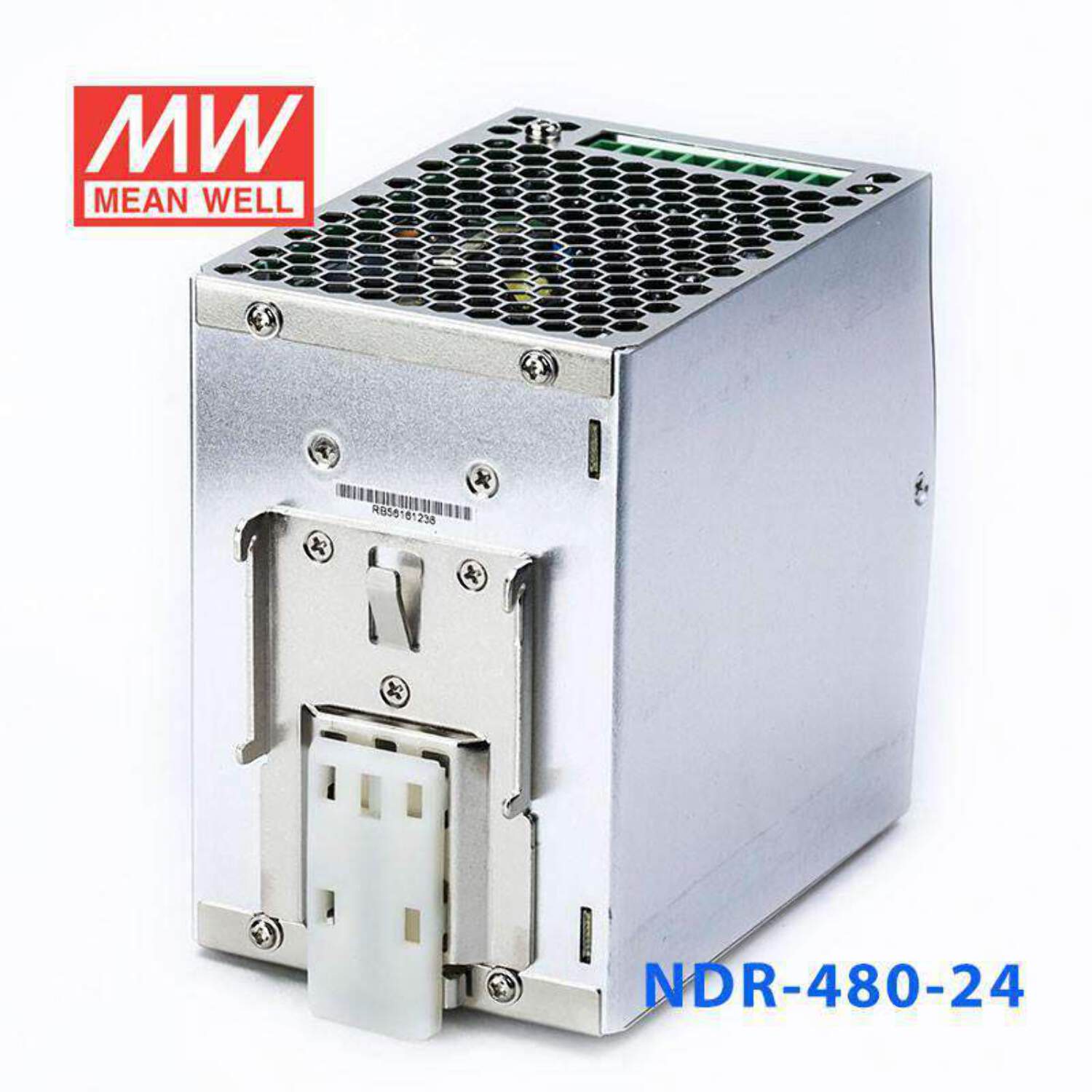

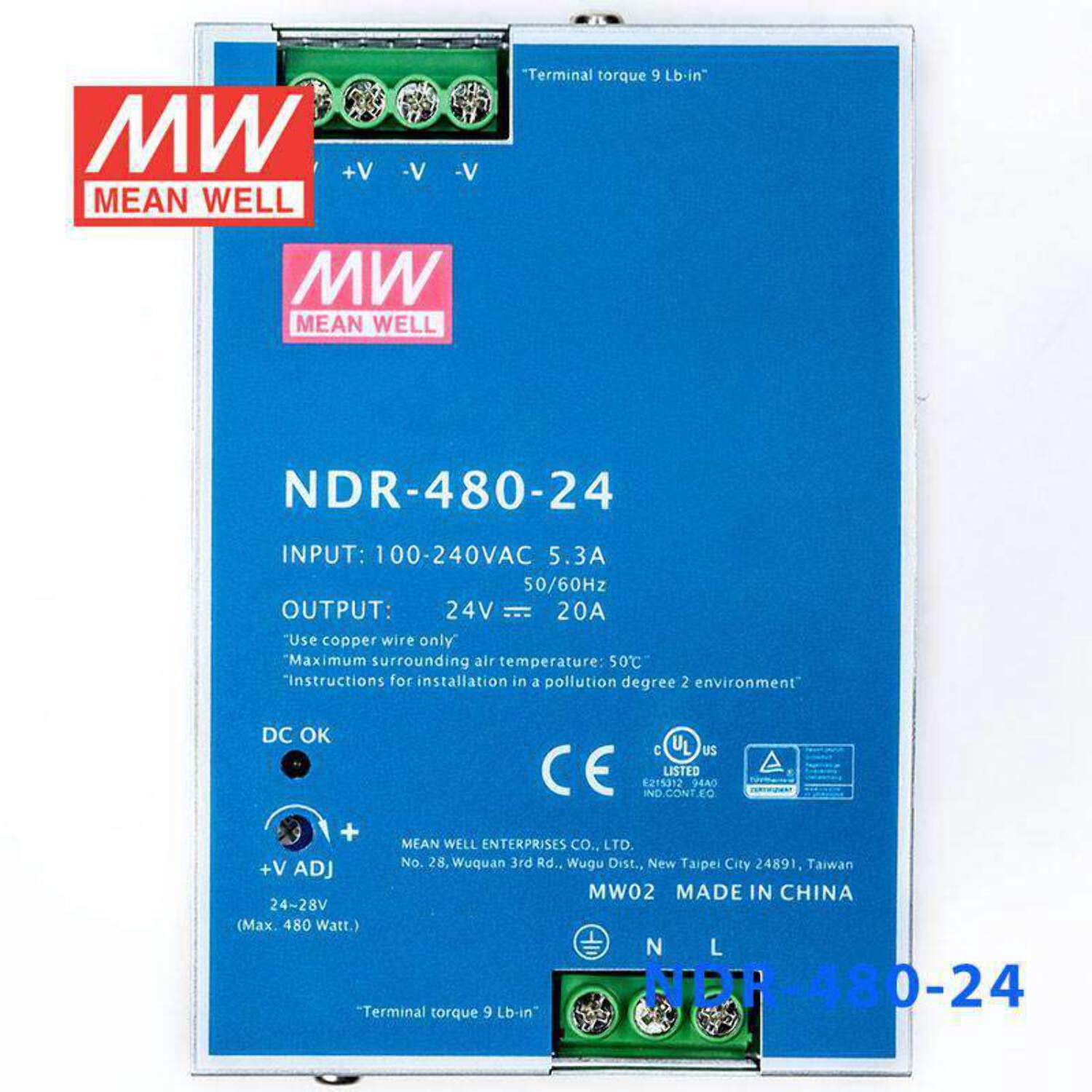

Mean Well NDR-480-24 Single Output Industrial Power Supply 480W 24V - DIN Rail

<em></em> Features<table><tbody><tr><td>Universal AC input / Full range</td></tr><tr><td>Protections: Short circuit / Overload / Over voltage / Over temperature</td></tr><tr><td>Cooling by free air convection</td></tr><tr><td>Can be installed on DIN rail TS-35 / 7.5 or 15</td></tr><tr><td>UL508 (industrial control equipment) approved</td></tr><tr><td>EN61000-6-2 (EN50082-2) industrial immunity level</td></tr><tr><td>100% full load burn-in test</td></tr><tr><td>Low cost</td></tr><tr><td>3 years warranty</td></tr><tr></tr><tr></tr><tr></tr><tr></tr><tr></tr><tr></tr></tbody></table><br><em></em> General Specification <table><tbody><tr><td><strong>AC input voltage range</strong></td><td>90~264VAC; 127~370VDC</td></tr><tr><td><strong>AC inrush current (max.)</strong></td><td>Cold start, 35A at 230VAC</td></tr><tr><td><strong>DC adjustment range</strong></td><td>12V: 12~14V, 24V: 24~28V, 48V: 48~55V</td></tr><tr><td><strong>Overload protection</strong></td><td>105%~130% Constant current limiting, auto-recovery</td></tr><tr><td><strong>Over voltage protection</strong></td><td>14V: 14~17V, 24V: 29~33V, 48V: 56~65V</td></tr><tr><td><strong>Over temperature protection</strong></td><td>Shut down o/p voltage, re-power on to recover</td></tr><tr><td><strong>Withstand voltage</strong></td><td>I/P-O/P: 3kVAC, I/P-FG: 2kVAC, O/P-FG: 0.5kVAC</td></tr><tr><td><strong>Working temperature</strong></td><td>-20~+70°C(refer to output derating curve)</td></tr><tr><td><strong>Safety standards</strong></td><td>UL508, TUV EN60950-1 approved</td></tr><tr><td><strong>EMC standards</strong></td><td>EN55022(CISPR22), EN61204-3 Class B,EN61000-3-2,-3 , EN61000-4-2,3,4,5,6,8,11,EN55024, EN61000-6-2(EN50082-2), EN61204-3</td></tr><tr><td><strong>Connection (screw DIN terminal)</strong></td><td>I/P: 3 poles, O/P: 4 poles</td></tr><tr></tr><tr><td><strong>Dimension (LxWxH) (mm)</strong></td><td>85.5x 125.2x 128.5mm</td></tr><tr><td><strong>Packing</strong></td><td>8pcs / 13kg</td></tr></tbody></table><em></em>
